Productomschrijving

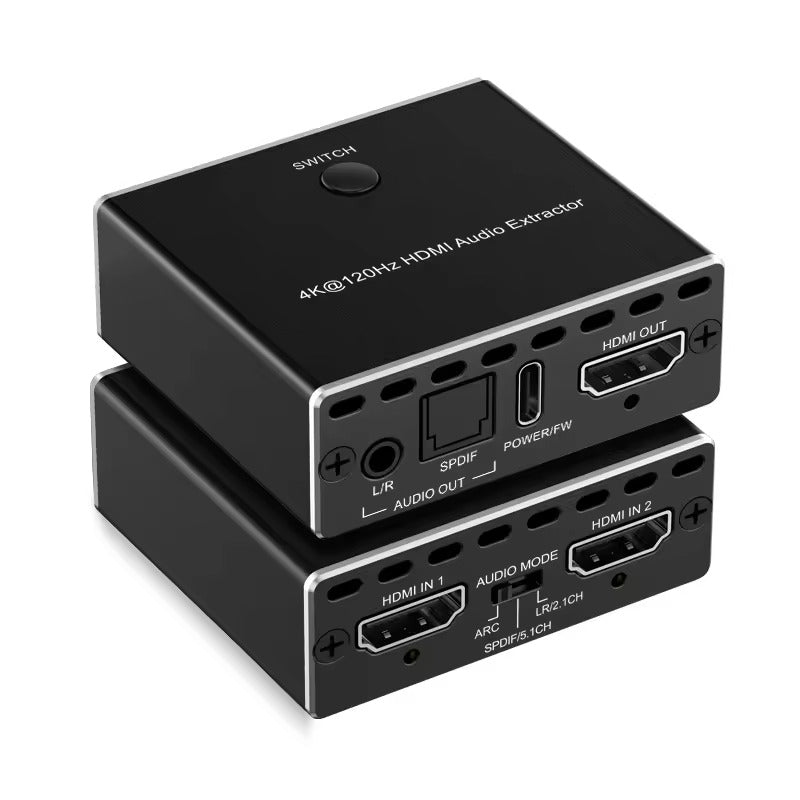

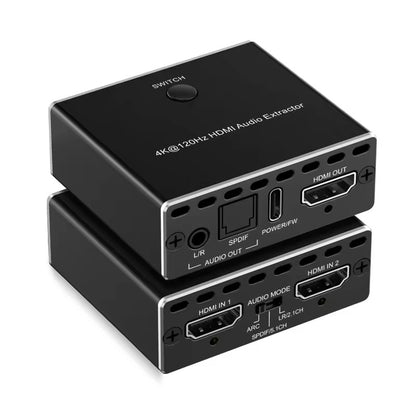

Discover the NÖRDIC SGM-237 HDMI 2.1 Switch - Audio Extractor - 8K60Hz, 4K120Hz - 3.5mm Jack AUX - Optical SPDIF
Get the most out of your home entertainment setup with the NÖRDIC HDMI 2.1 switch and audio extractor. This versatile HDMI switch allows you to connect up to two HDMI sources to a split screen, while simultaneously extracting audio via different channels, including HDMI, optical S/PDIF, or 3.5mm AUX.
With support for resolutions up to 8K60Hz HDR10+ 8bpc RGB via DSC 1.2, you are assured of razor-sharp image quality. The device supports HDCP 2.3 and offers a maximum bandwidth of 48Gbps, so you can enjoy smooth, uninterrupted image transmission. Whether RGB Y'CbCr 4:4:4, 4:2:2, or 4:2:0 color formats, the NÖRDIC HDMI 2.1 switch offers flexibility for all your needs.
Audiophiles will enjoy the versatile audio features of this switch. With support for audio formats such as Dolby Atmos, DTS-X, and Dolby TrueHD, you will be immersed in an immersive sound experience. The HDMI CEC functionality makes it easy to control the volume of your speakers or amplifiers with your TV remote control.
With plug-and-play functionality, you won’t need any drivers to get started. The switch is powered via the included 5V1A power cord for ultimate convenience. With a compact size of 58x52x22mm and a weight of only 100g, this switch easily fits into any setup.
Upgrade to the NÖRDIC SGM-237 HDMI 2.1 Switch - Audio Extractor today and take your home entertainment to the next level.
Specifications:

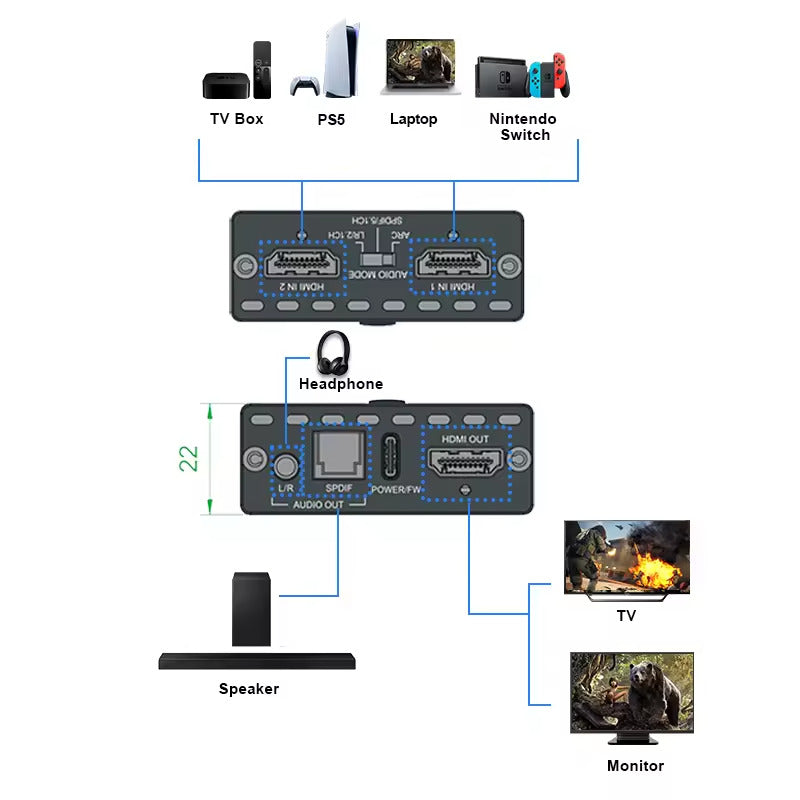

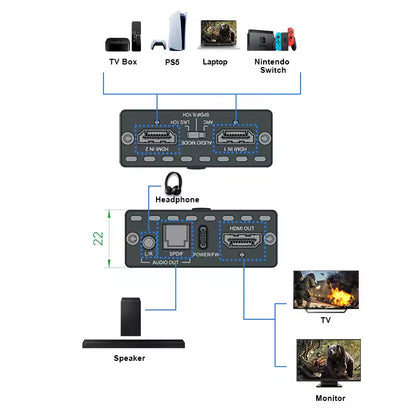

- Inputs:

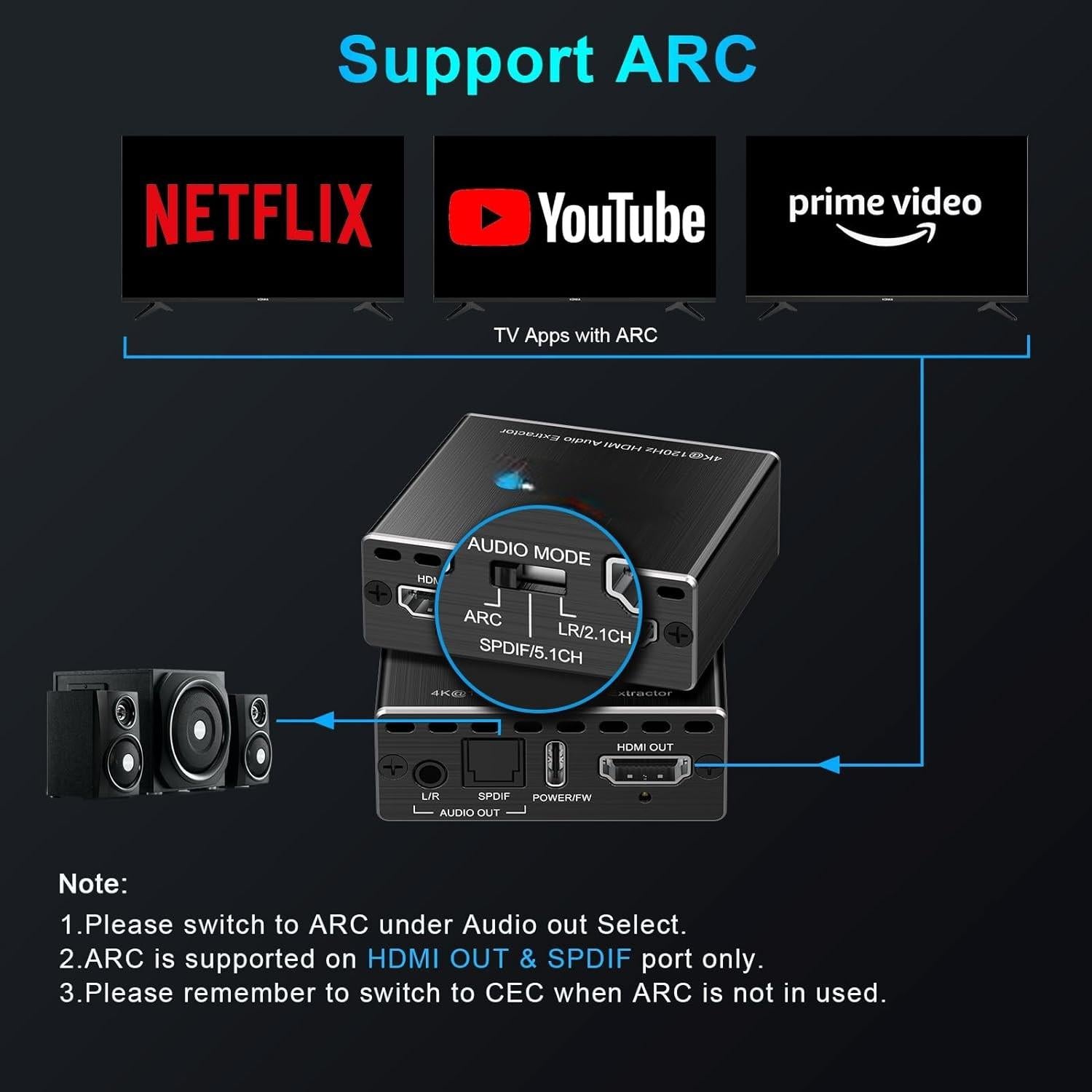

- 2x HDMI 2.1 ARC/eARC
- 1x DC 5V
- Outputs:
- 1x HDMI audio
- 1x Optical S/PDIF
- 1x 3.5mm AUX
- Resolutions:
- 8K at 60/30 Hz
- 4K at 120/60 Hz
- 1440p at 120/60 Hz
- 1080P @ 144/120/60 Hz, 4:4:4 8 bit
- Bandwidth: 48Gbps
- Data Rate: 41.92 Gbps
- Support for:
- Dynamic HDR
- HDR10+
- VRR
- ALLM
- Free-Sync/G-Sync
- Dolby Vision
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: up to 16 bpc
- Audio formats:
- HDMI: PCM 2.0, LPCM 7.1/5.1, Dolby Atmos, DTS Master, DTS-X, DTS, Dolby TrueHD, Dolby Digital Plus
- S/PDIF: LPCM 5.1/2.0 Dolby Digital, DTS 5.1, DTS
- 3.5mm: PCM 2.0 Stereo
- Support for EDID and auto switching
- No drivers required, plug and play
- Dimensions: 58x52x22mm
- Weight: 100 g
- Colour: black
Contents:
- 1x SGM-237 HDMI 2.1 Switch - Audio Extractor
- 1x USB-C to A 5V1A power cable
- 1x Manual
